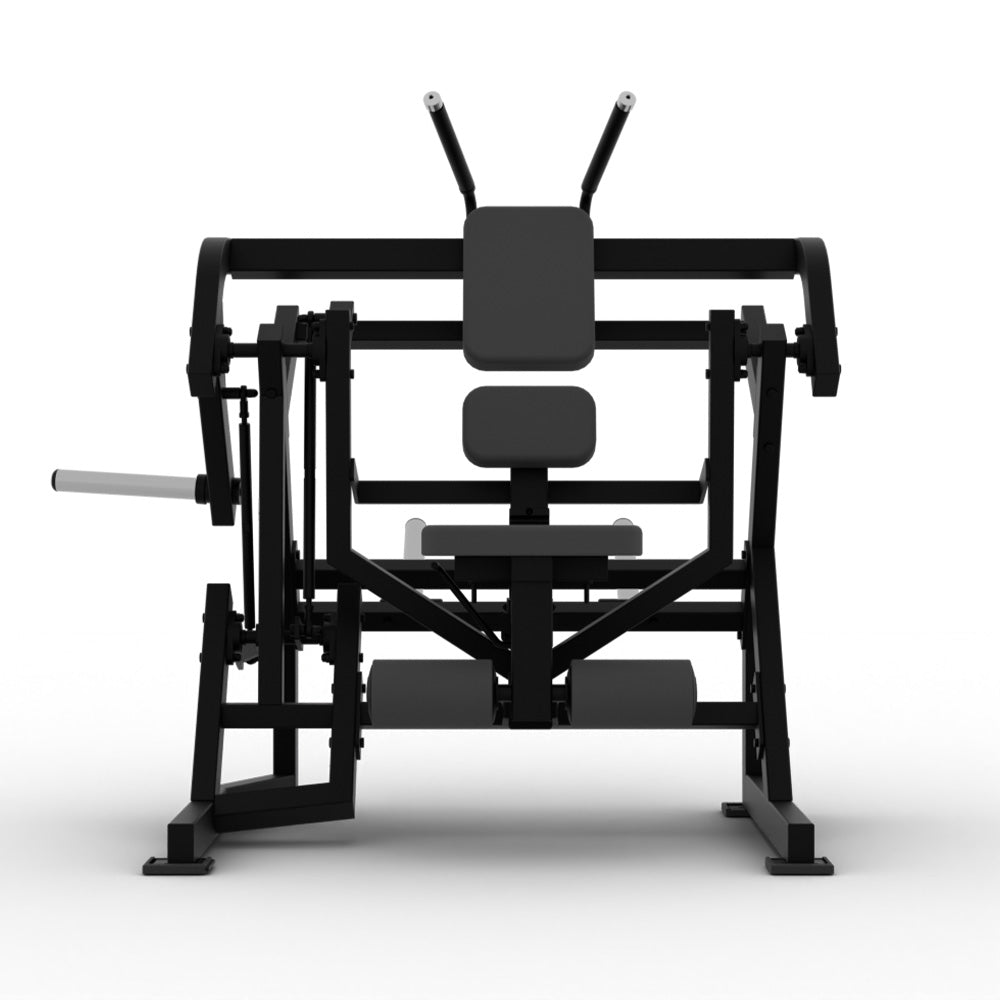

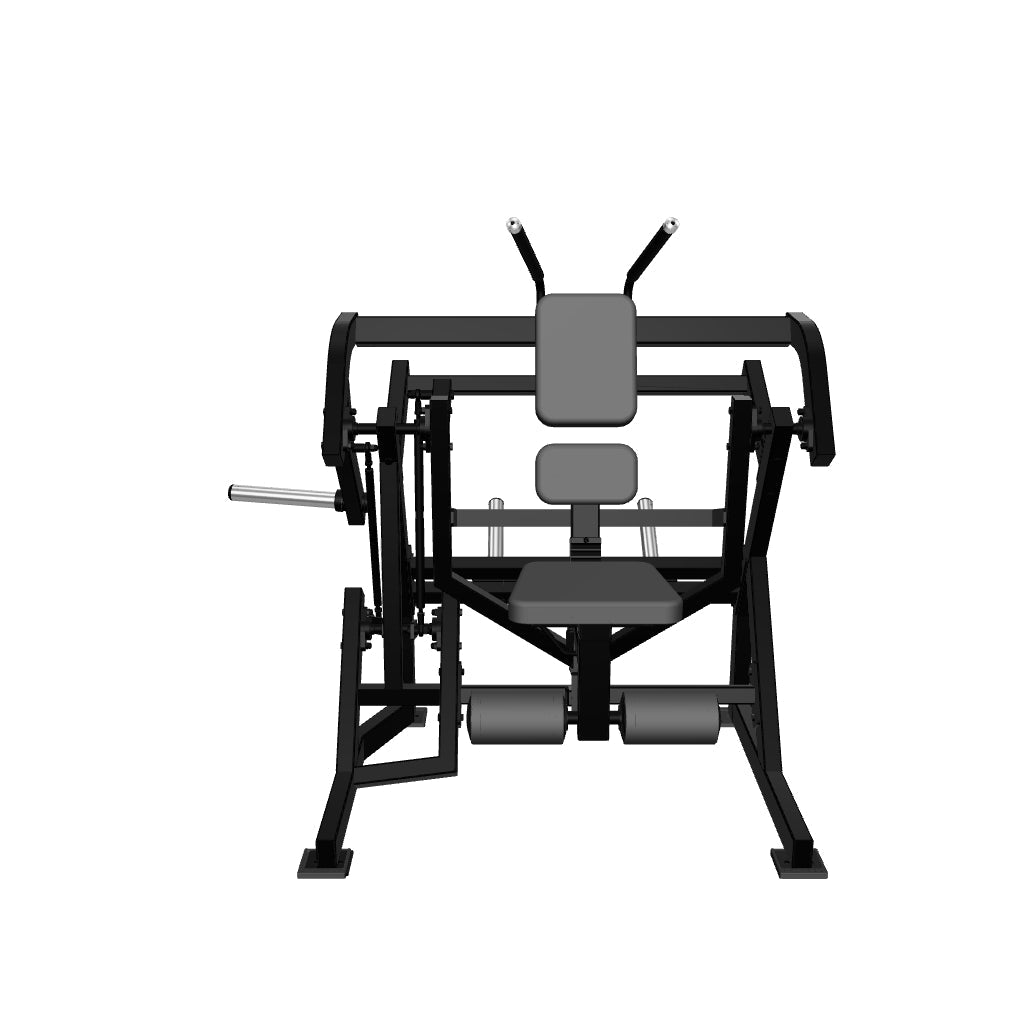

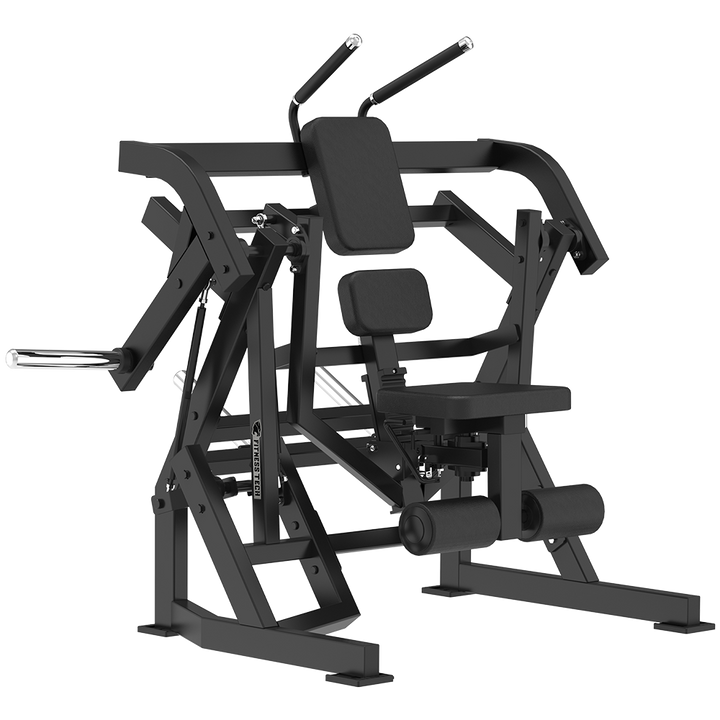

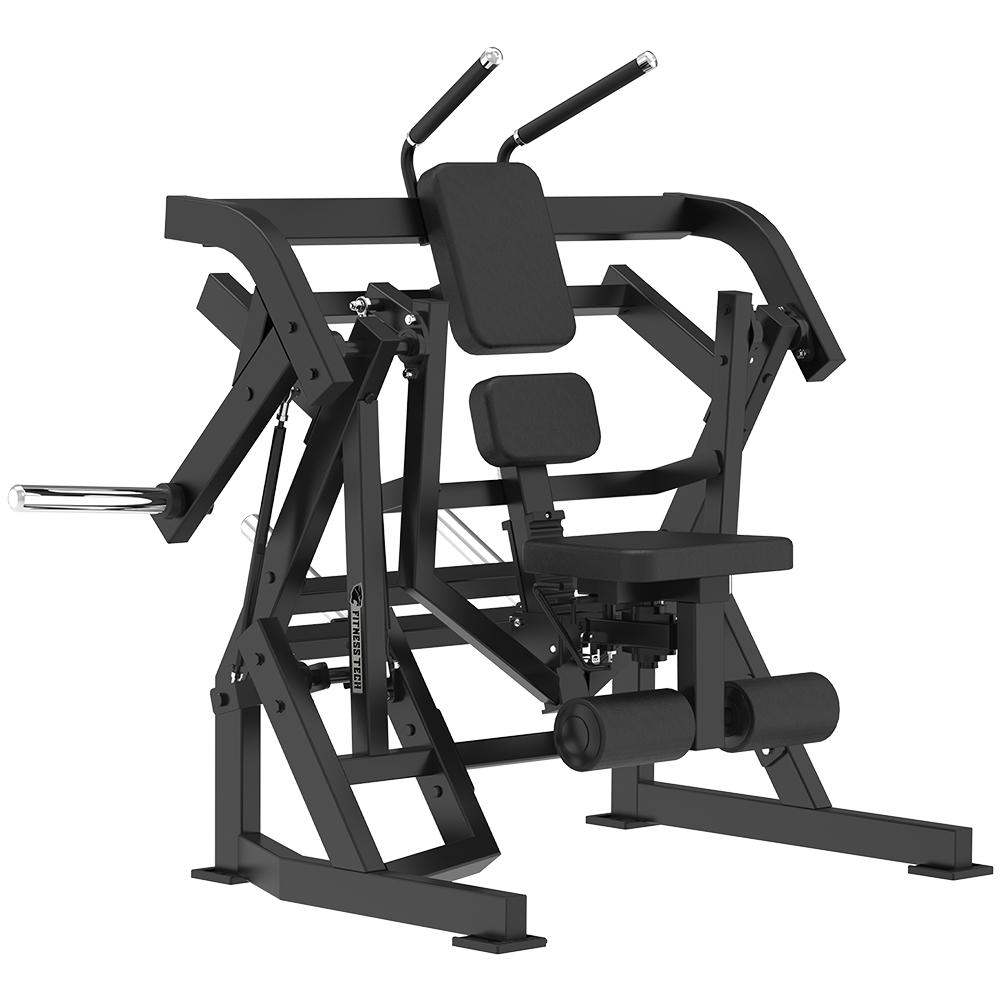

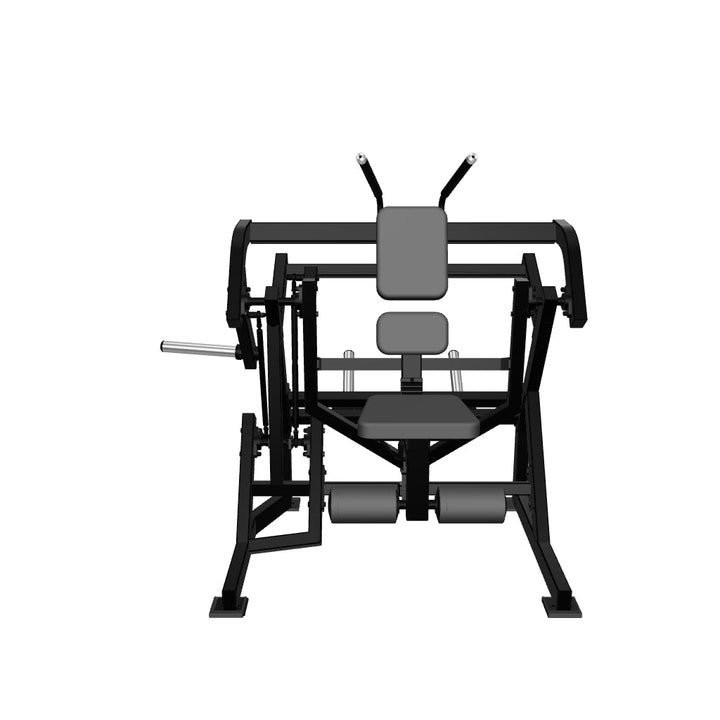

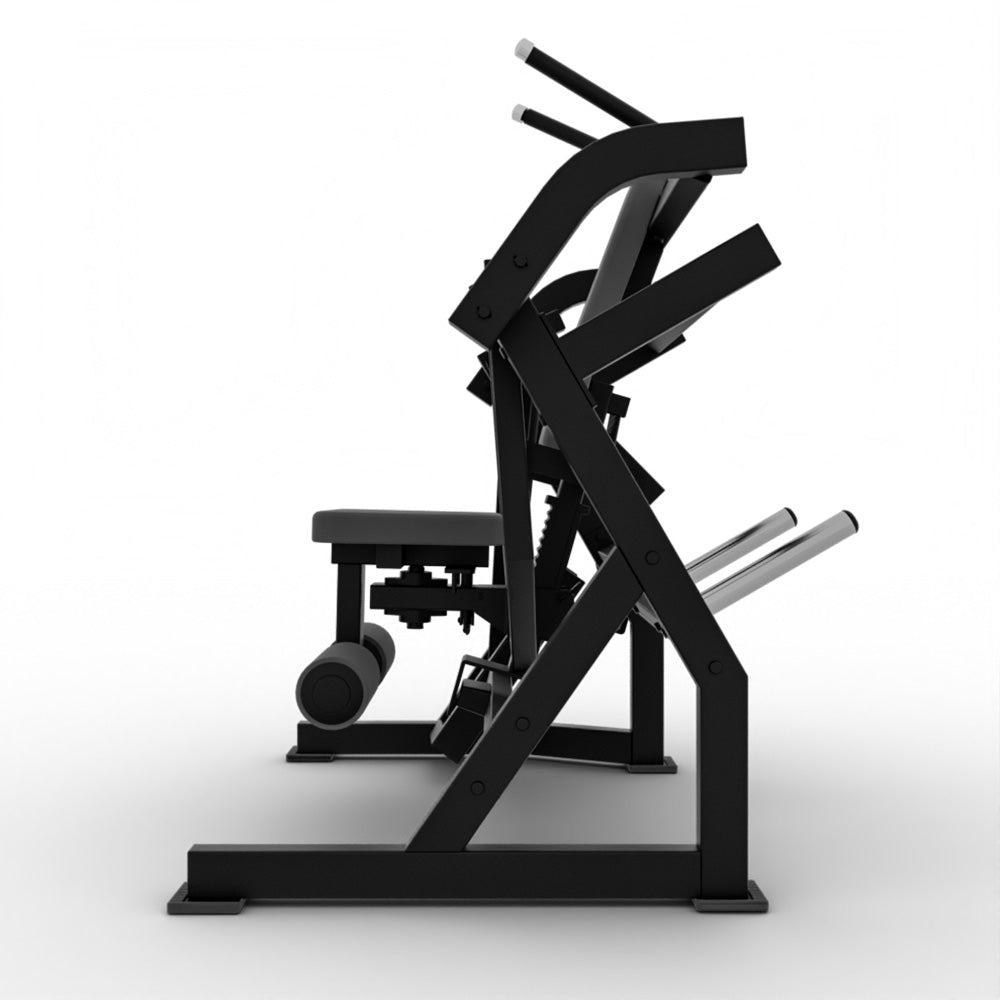

Ab Crunch | Plate Loaded machine - Compact Series

Ab Crunch | Lever Machine - Compact Series

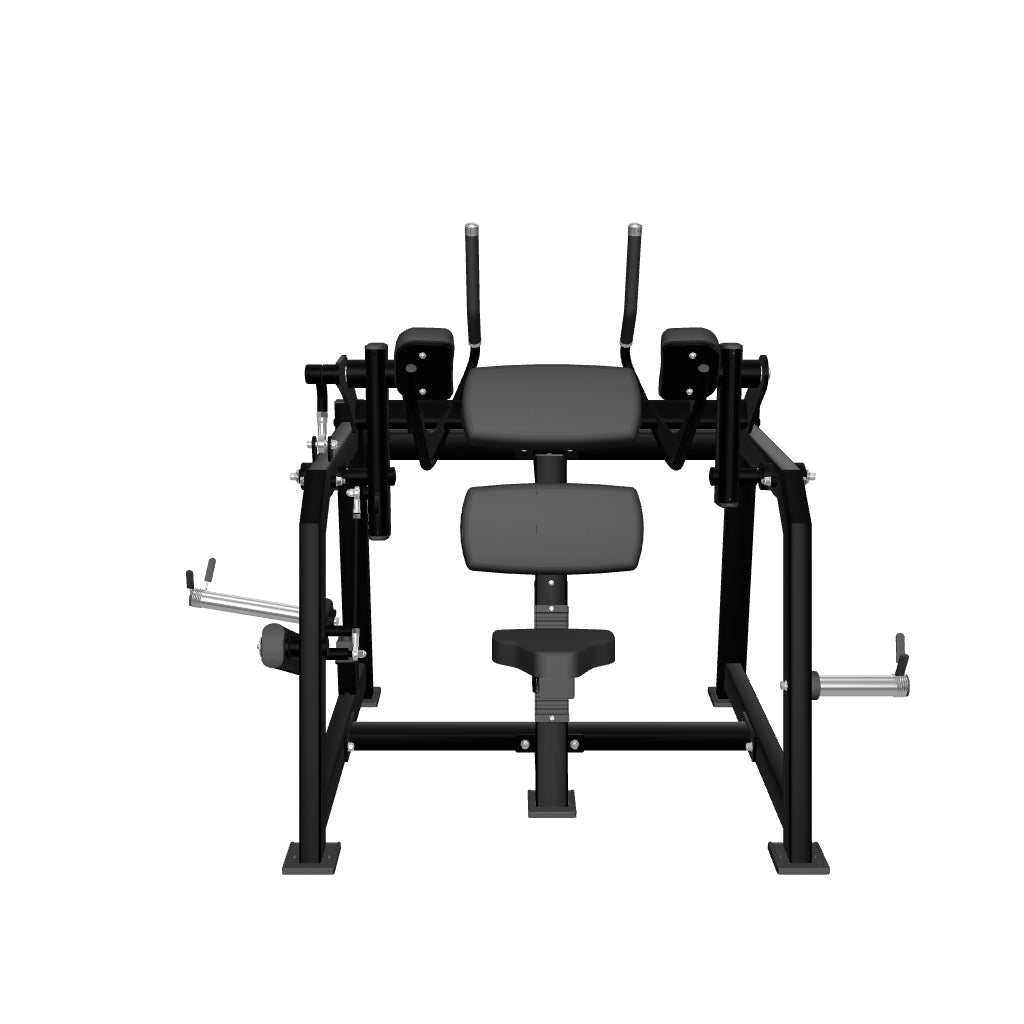

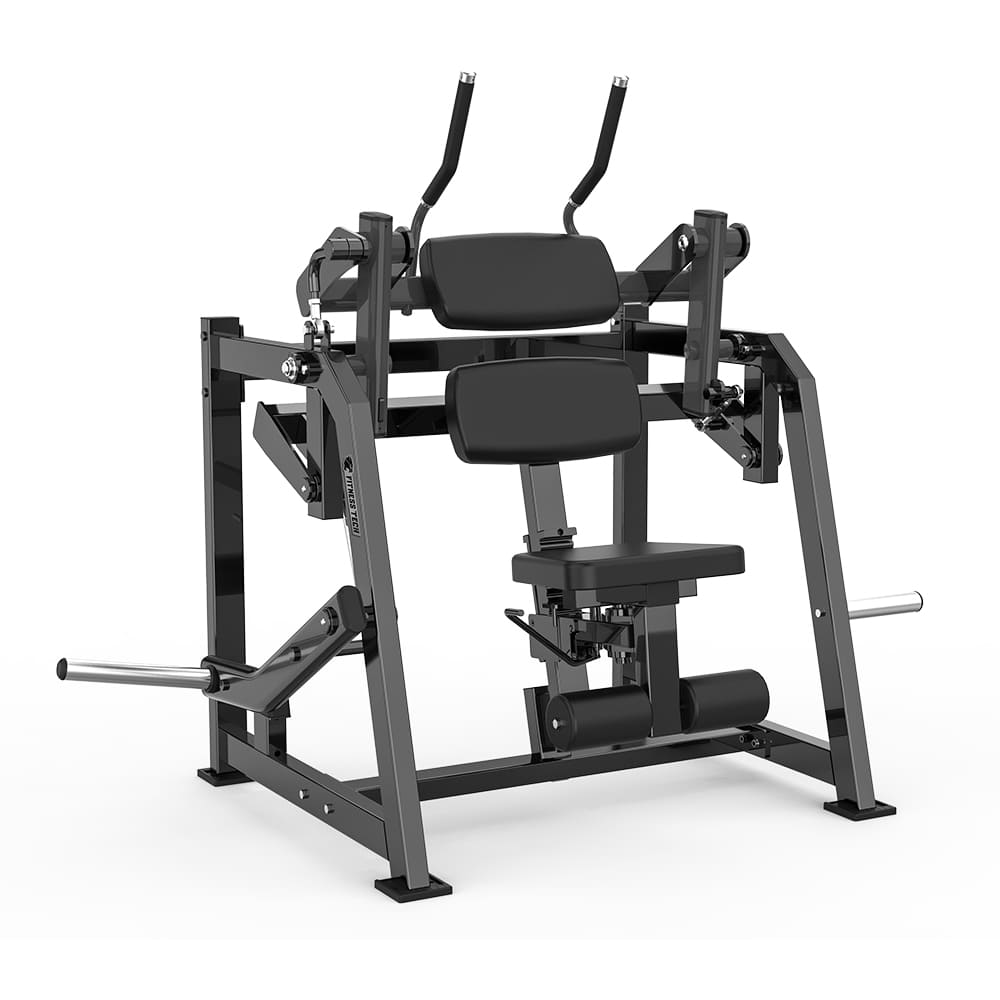

The Fitness Tech Compact Series Ab Crunch Lever Machine is designed to develop core muscles through a guided and fully controlled movement. Thanks to its lever system with plate-loaded resistance, it allows performing the crunch exercise with progressive and constant resistance, promoting a more intense abdominal contraction and a much more effective workout than traditional floor exercises.

Its ergonomic design allows maintaining a natural spinal alignment during the movement, reducing tension on the neck and lower back. This machine enables safe and stable abdominal training, offering a specific workout for core development and becoming a fundamental piece in any strength training area or professional gym.

Plate-loaded resistance for a stronger core than on the floor

Unlike the traditional floor crunch, where resistance is limited to body weight, this machine allows adding progressive load as the core gains strength, something impossible to replicate without equipment. The backrest support and upper grips fix the posture and prevent arm or leg momentum from reducing abdominal effort, concentrating the work on the rectus abdominis and obliques. Built on a 50 × 80 × 2.5 mm Q235 steel tube structure with galvanized anti-corrosion coating, it withstands intensive training in commercial gyms.

Main Features

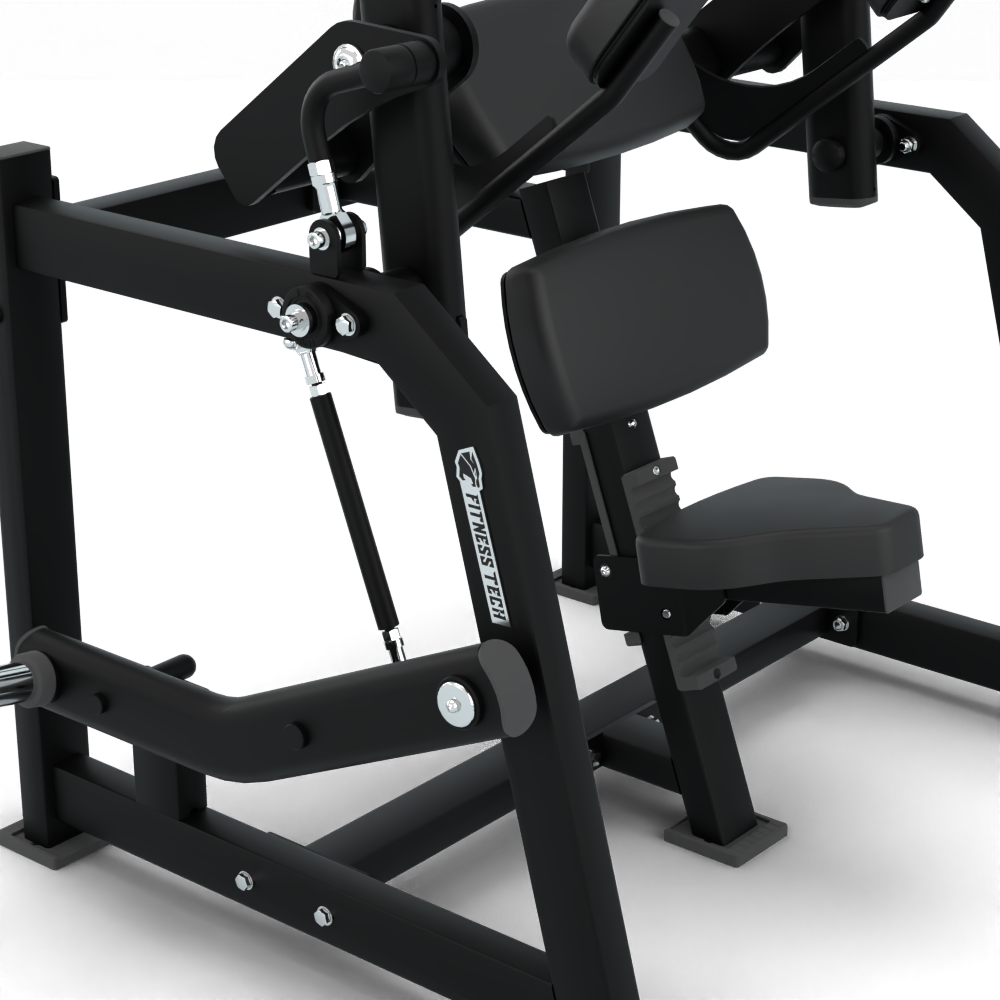

• Lever system: provides a guided and controlled movement that maintains constant resistance throughout the exercise.
• Plate load up to 150 kg: allows progressive adjustment of training intensity according to the user’s level.

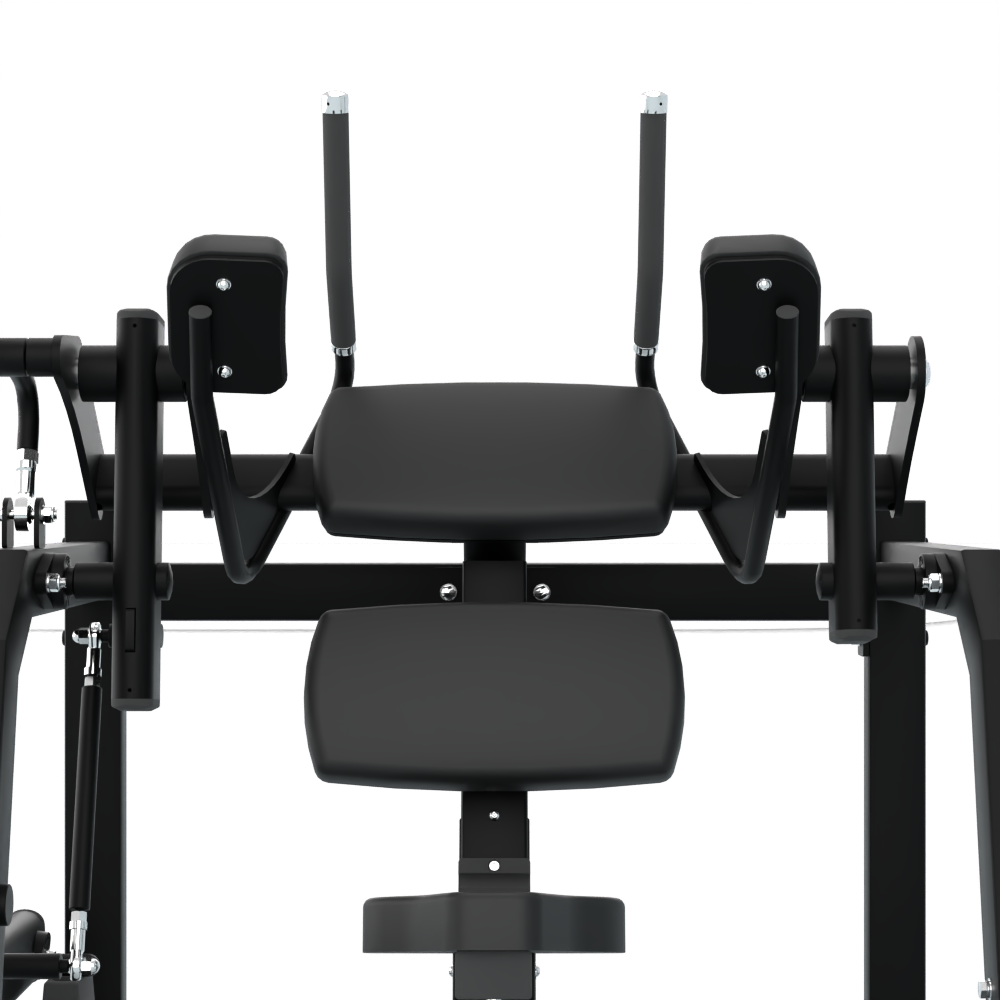

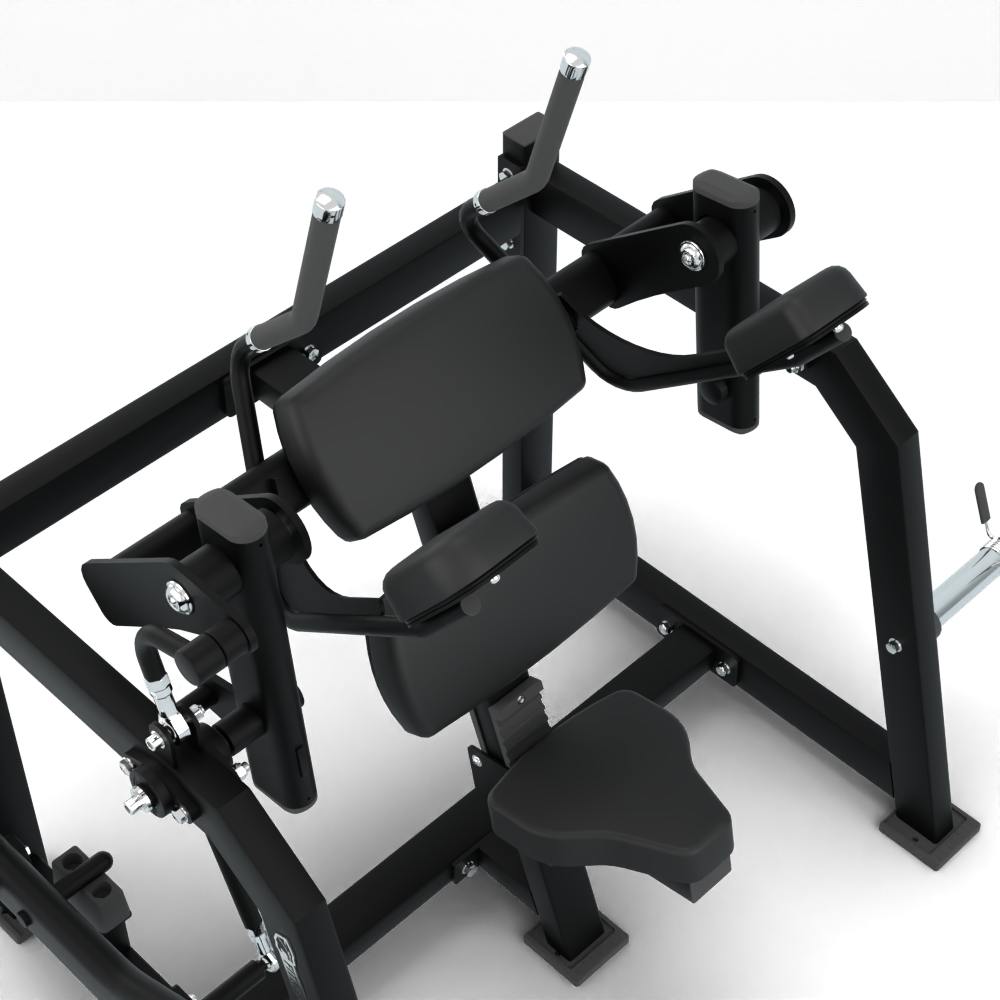

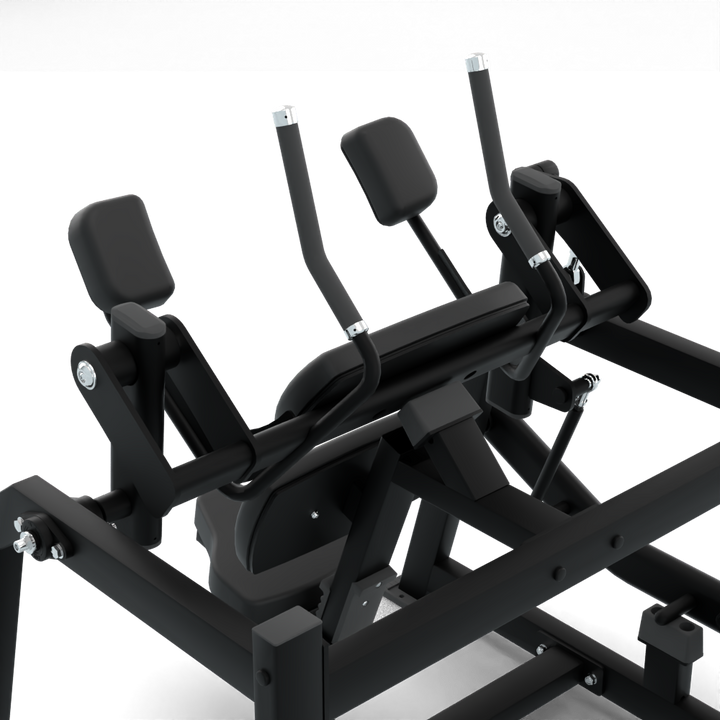

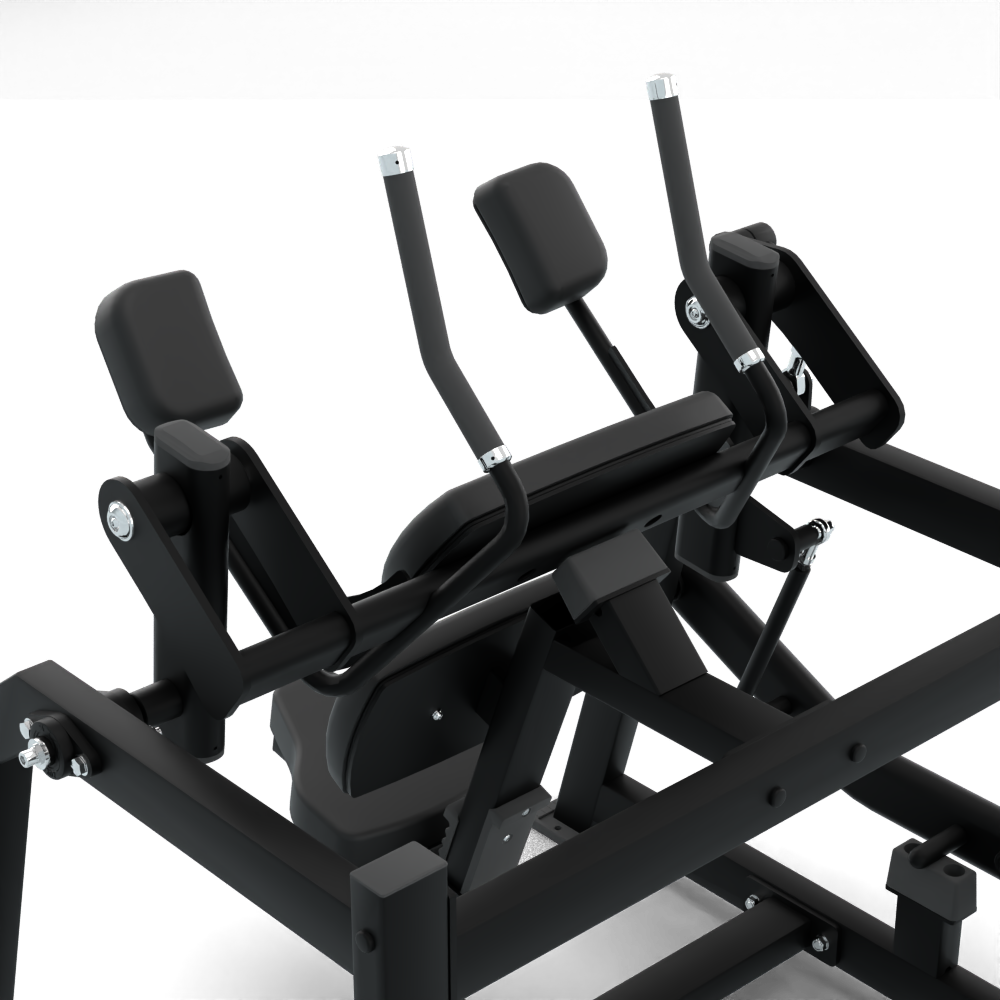

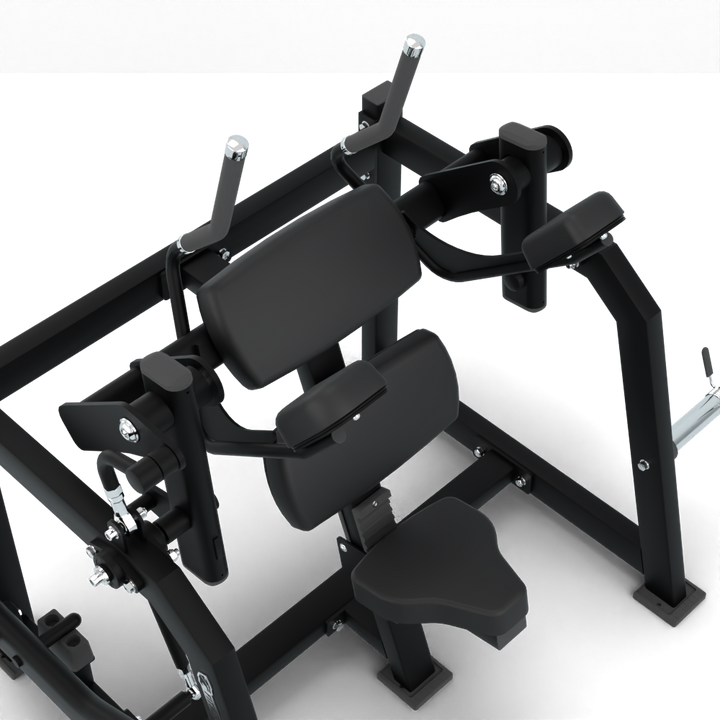

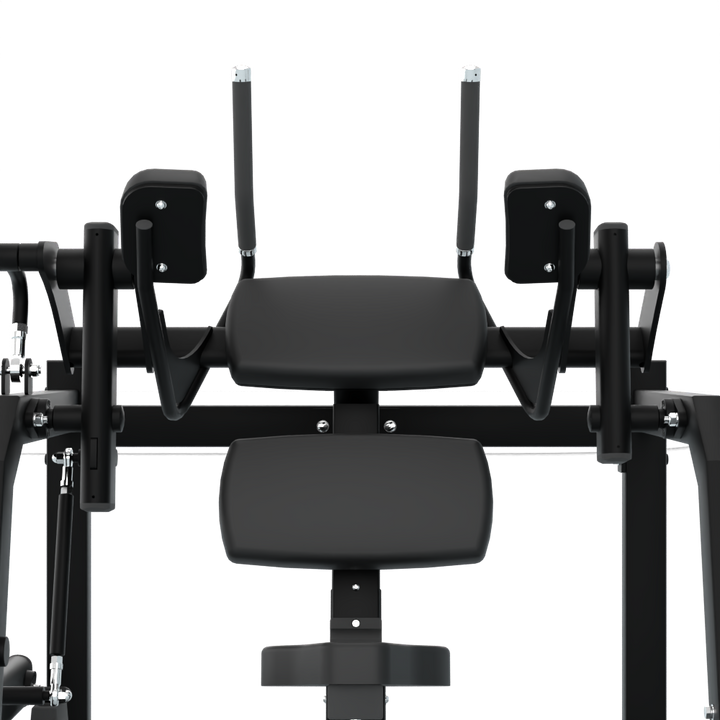

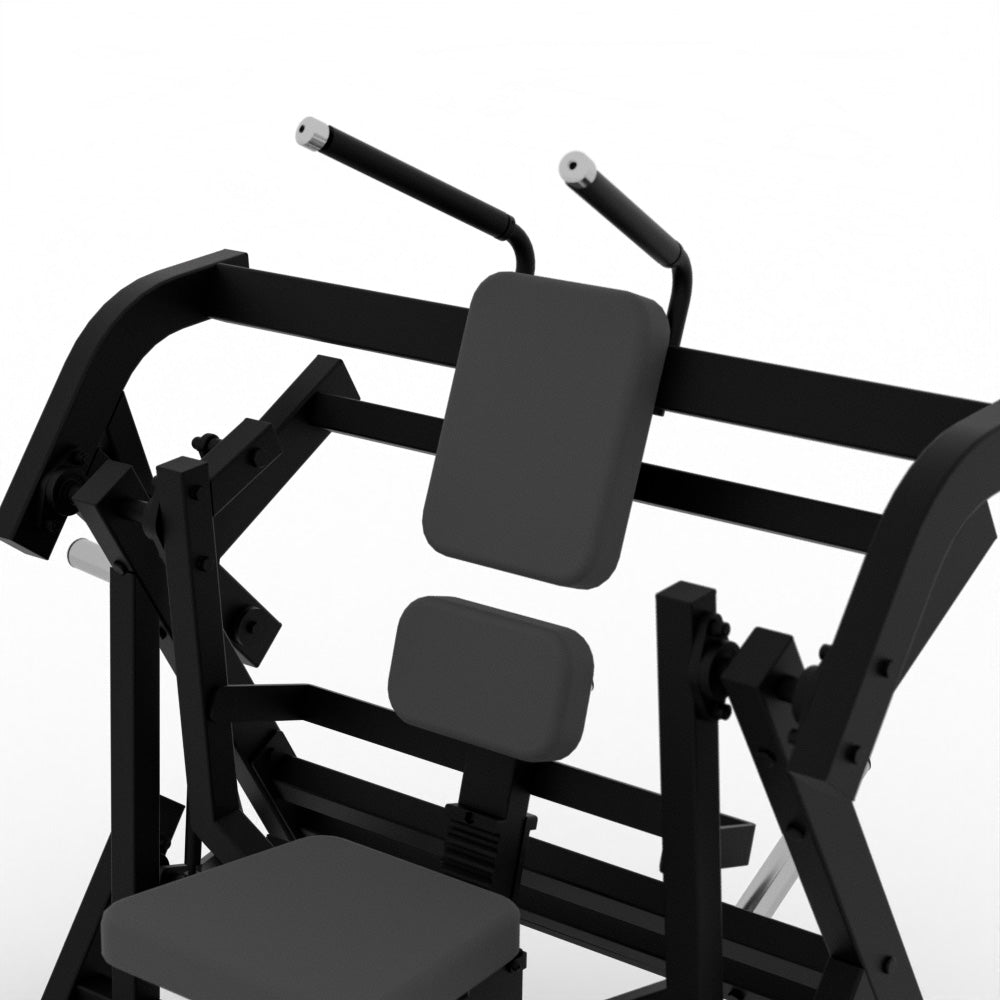

• Ergonomic upper grips: facilitate a stable torso position during the crunch execution.

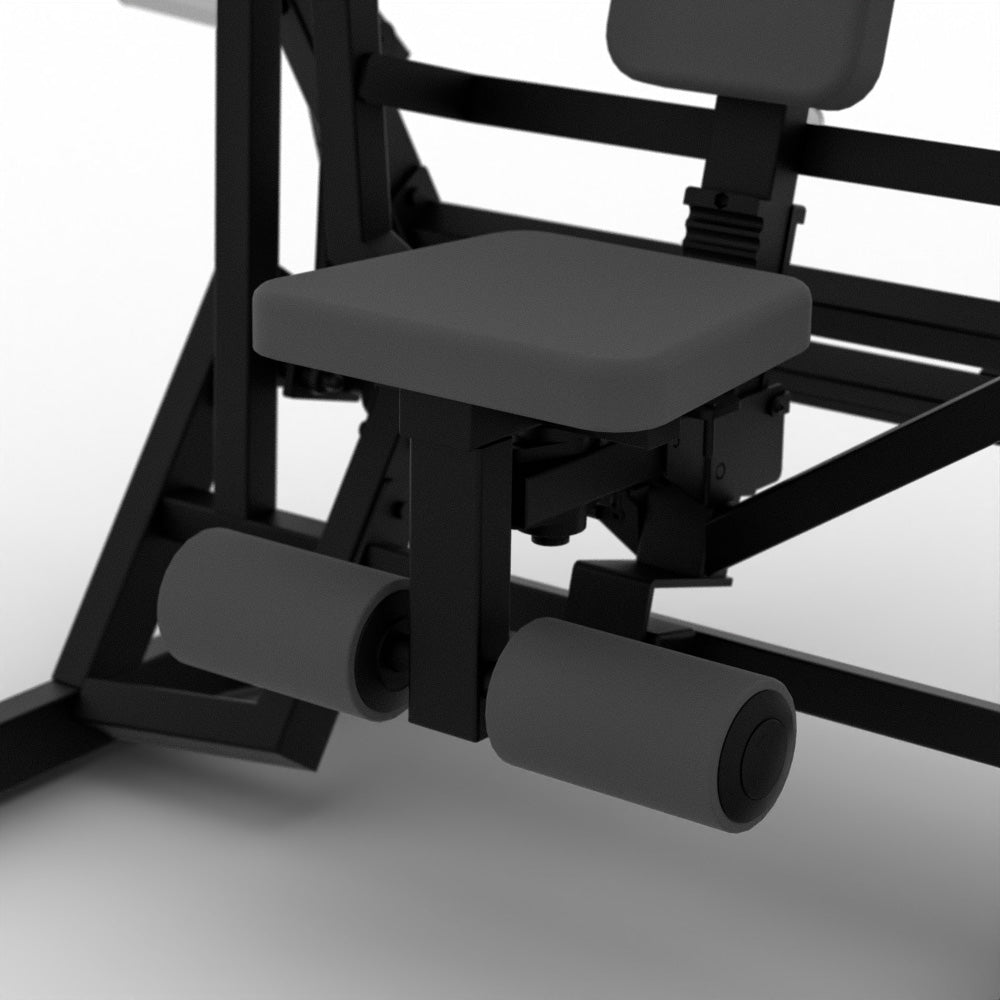

• Adjustable seat: adapts the machine to different users to maintain correct posture during exercise.
• Galvanized Q235 steel structure: 50 × 80 × 2.5 mm tube with anti-corrosion treatment for maximum stability.
• Stainless steel loading sleeve: compatible with Ø50 mm Olympic plates.
• High-density padding: offers comfort and stability during movement.

Technical Specifications

• Dimensions: 172 × 123 × 157 cm
• Weight: 158 kg
• Maximum plate load: 150 kg
• Maximum user weight: 180 kg
• Structure: Q235 steel with galvanized anti-corrosion coating
• Main tube: 50 × 80 × 2.5 mm
• Loading sleeve: 1 · stainless steel · Ø50 Olympic
• Plate storage supports: 1 · stainless steel · Ø50 Olympic
• Grips: vulcanized rubber handles
• Upholstery: high-density foam with leather-like finish
• Finish: electrostatic powder coating
• Certifications: CE and EN ISO 20957
